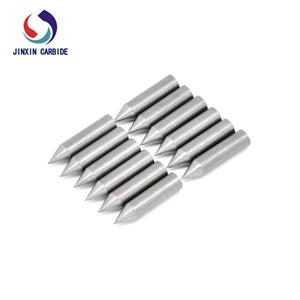

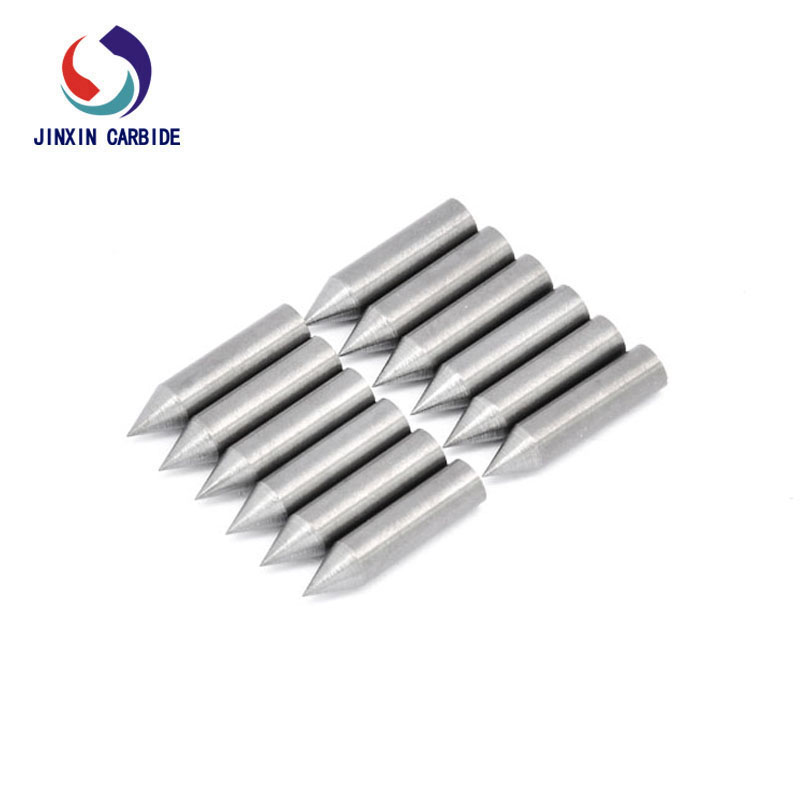

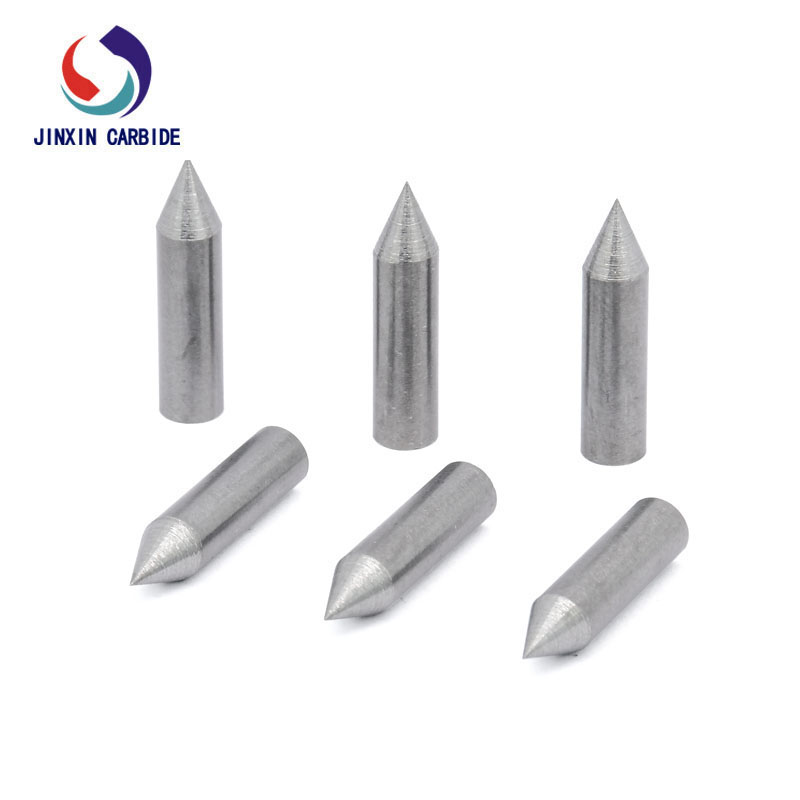

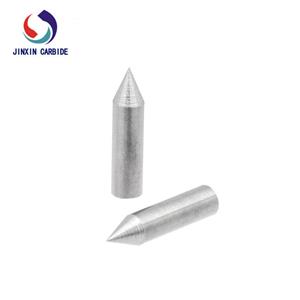

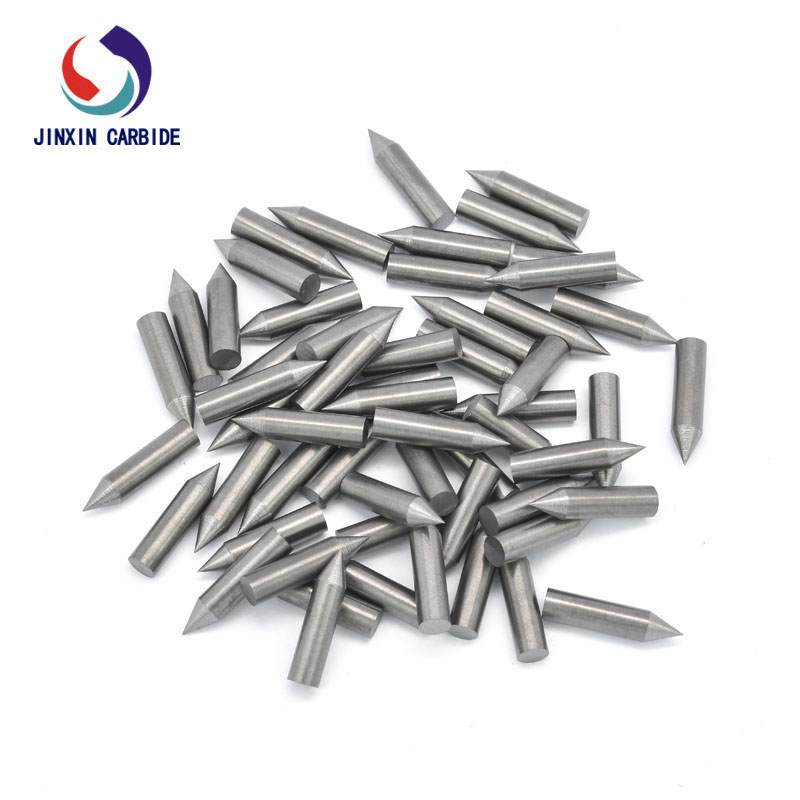

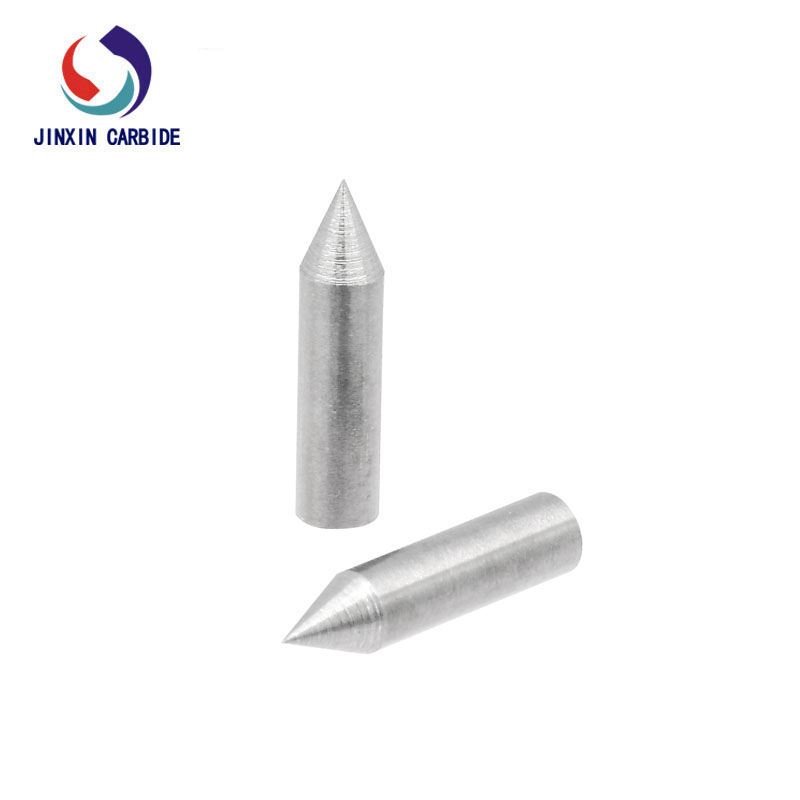

Precision Ground Pointed Tungsten Carbide Rods (Sharpened Carbide Pins)
Brand Name : JINXIN
Place of Origin : CHINA
MOQ : 100PCS
Packaging Details : COMMON PACKAGE
Delivery Time : 15 days
Supply Ability : 10000 PCS/MONTH
Matierial : Tungsten carbide、Cermet
Grade : YL10.2 /Cermet
Type : Ultrafine / Submicron
Application : Medical & Dental Instruments
Grain Size : Submicron / Fine Grain
Our precision ground pointed tungsten carbide rods (also known as sharpened carbide rods or carbide pins) are designed for applications requiring high hardness, wear resistance, and precise tip geometry. These pointed carbide rods are widely used in glass cutting, PCB positioning, engraving tools, wear parts, and precision industrial components, where durability and accuracy are critical. Manufactured from high-quality tungsten carbide materials, each rod is processed through precision grinding and tip forming, ensuring consistent tip angle, sharpness, and dimensional stability.
Key Features of Pointed Carbide Rods
High Hardness: HRA 89 – 93
Excellent Wear Resistance
Precision Ground Tip (Sharp & Consistent)
Various Tip Angles Available (30° / 45° / 60° / Custom)
Smooth Surface Finish (Ra ≤ 0.2 μm)
High Strength & Impact Resistance
Long Service Life
Available Specifications
| Diameter (mm) | Length (mm) | Tip Angle | Tip Type |
|---|---|---|---|
| 0.5 – 2.0 | 10 – 50 | 30°–60° | Sharp / Fine |
| 2.0 – 6.0 | 20 – 100 | Custom | Standard |
| 6.0 – 12.0 | 50 – 330 | Custom | Heavy-duty |
👉 Support customized tip geometry, radius tip, conical tip, and special profiles
Tip Geometry Options
Sharp Point (Conical Tip)
Flat Tip
Ball Nose Tip
Customized Profile Tip
All tips are produced by high-precision grinding machines, ensuring uniform angle and concentricity.
Material Grades
| Grade | Hardness (HRA) | TRS (MPa) | Application |
|---|---|---|---|
| K10 | 92.5 | 4000 | Precision tools |
| K20 | 91.5 | 4200 | Wear parts |
| K30 | 90.0 | 4500 | Impact applications |
✔ Available in virgin carbide or cost-effective recycled carbide
Applications of Pointed Carbide Rods
Glass cutting tools
PCB positioning pins
Engraving and marking tools
Precision wear parts
Textile and industrial needles
Mold and die components
Manufacturing Advantages
Advanced centerless grinding & tip grinding technology
Strict angle tolerance control
High consistency for batch production
Full inspection before shipment
Stable quality for long-term supply
Customization Capability
We support full customization:
Diameter & length
Tip angle & shape
Surface finish (polished / ground)
Special tolerance requirements
Application-based material selection

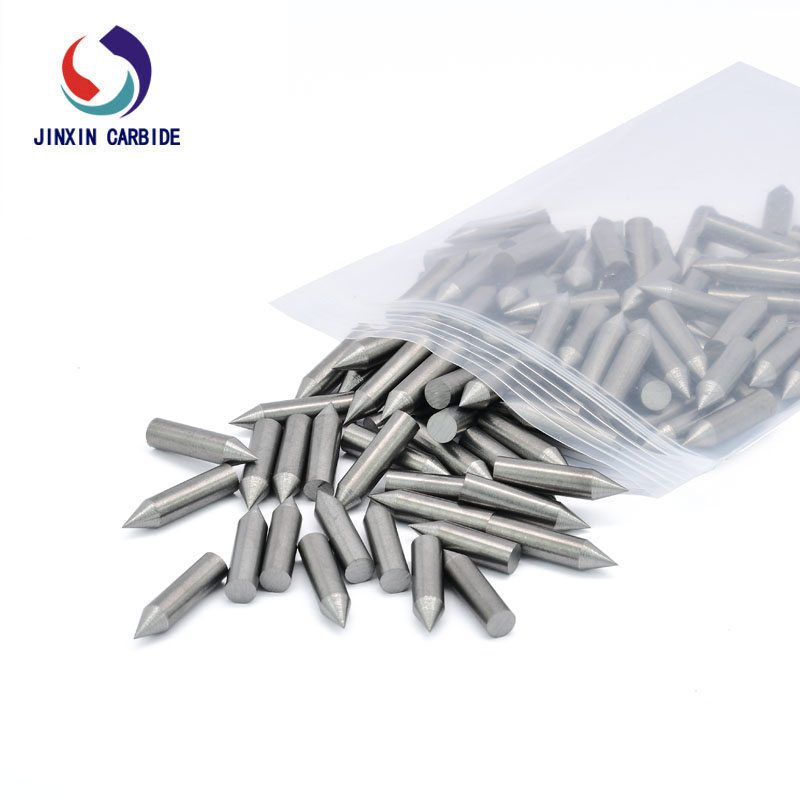

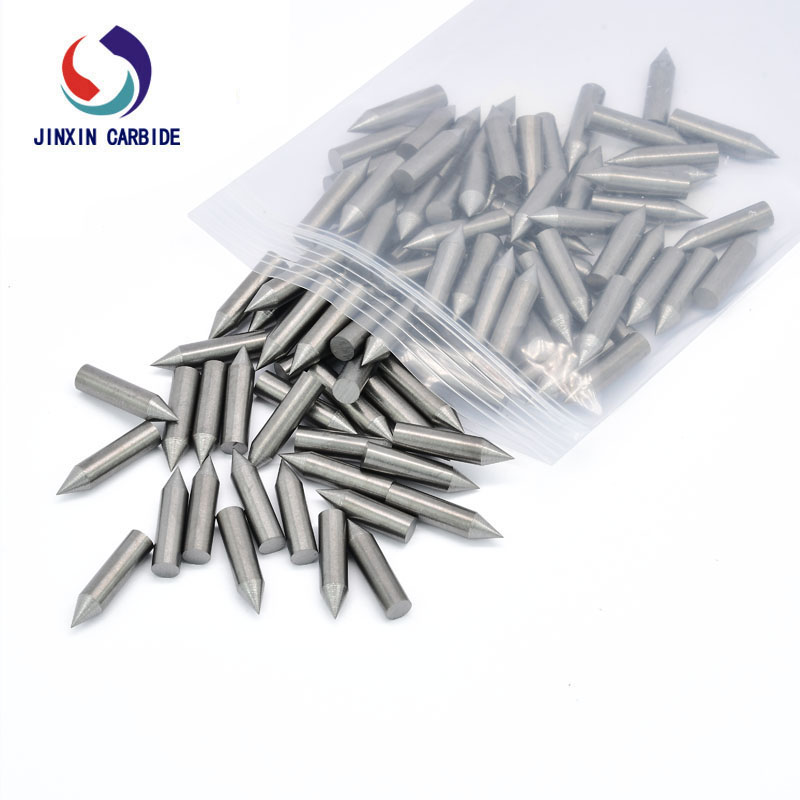

Packaging & Delivery
Packaging: Plastic tube + protective carton
Delivery: DHL / FedEx / Air / Sea
Lead time: 7–15 days
FAQ
Q1: Can you control the tip angle precisely?
A: Yes, we can control tip angles within tight tolerances using precision grinding equipment.
Q2: Do you support ultra-small diameters?
A: Yes, we can produce micro pointed carbide rods starting from 0.5 mm diameter.
Q3: Which material is better for wear resistance?
A: Higher hardness grades (like K10) provide better wear resistance, while K20/K30 offer better toughness.
