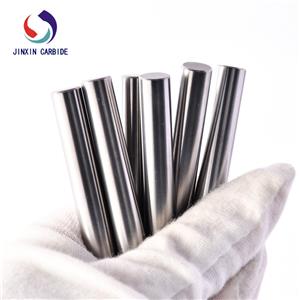

Premium Tungsten Carbide Rods | Solid & Coolant Hole Carbide Round Bars for High-Performance Cutting Tools
Brand Name : JINXIN
Place of Origin : CHINA
MOQ : 100PCS
Packaging Details : COMMON PACKAGE
Delivery Time : 15 days
Supply Ability : 10000 PCS/MONTH
Matierial : Tungsten carbide、Cermet
Grade : YL10.2 /Cermet
Type : Ultrafine / Submicron
Application : Micro Cutting Tools
Grain Size : Submicron / Fine Grain

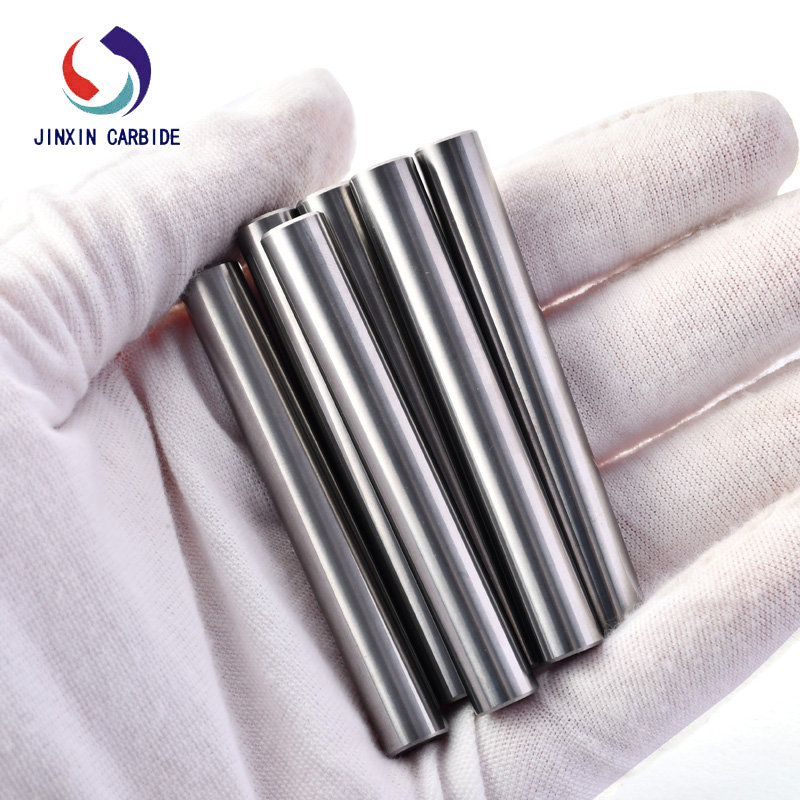

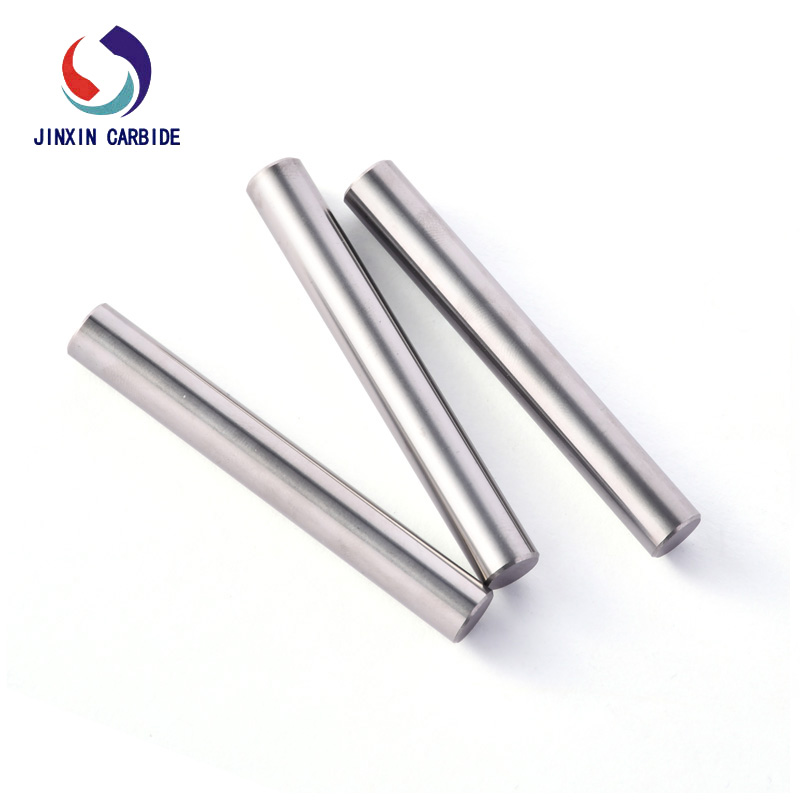

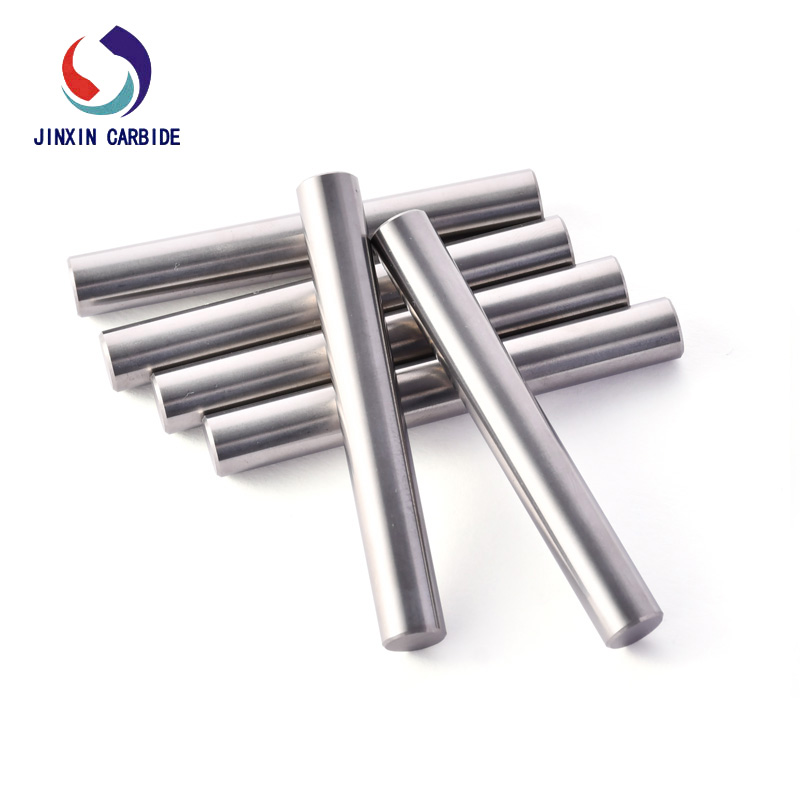

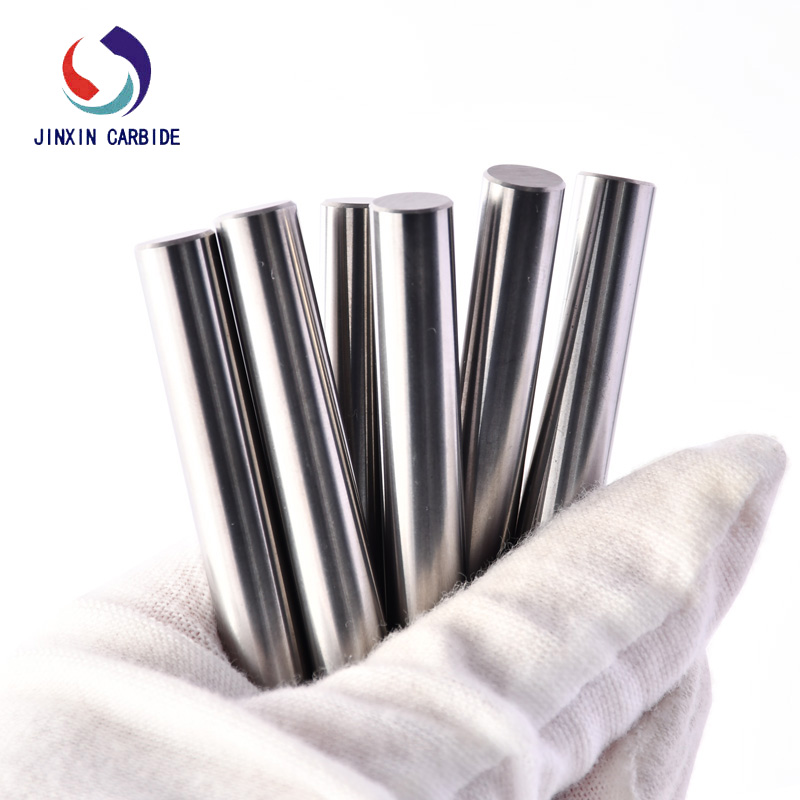

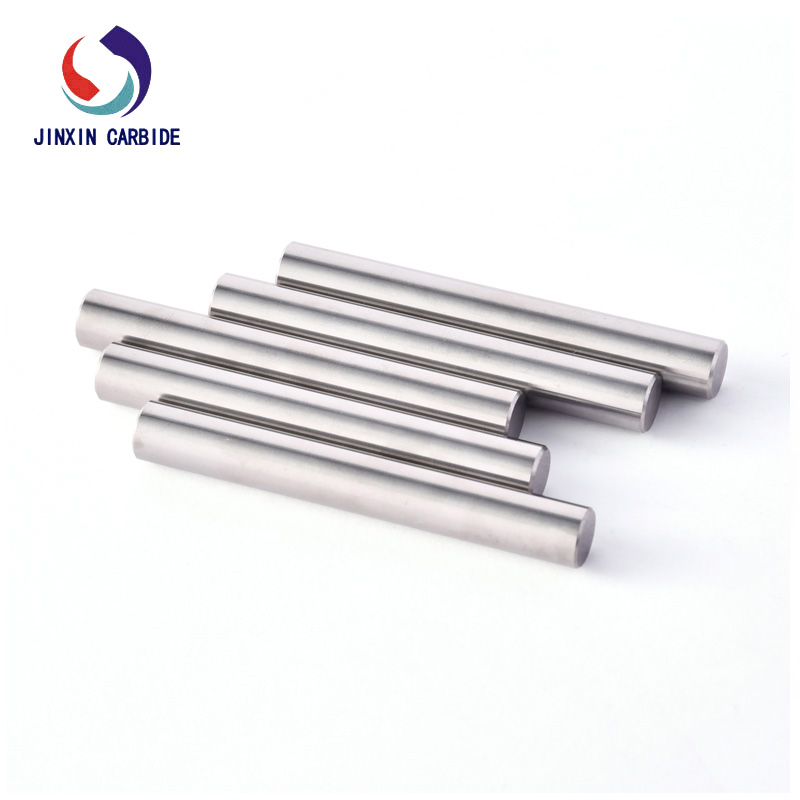

Tungsten carbide rods (also known as carbide round bars or solid carbide blanks) are one of the most important raw materials in the manufacturing of cutting tools and precision wear-resistant components. With excellent hardness, outstanding wear resistance, and superior compressive strength, carbide rods are widely used in CNC machining, metal cutting, drilling, and high-precision tooling industries.
Tungsten carbide rods (also known as carbide round bars or solid carbide blanks) are one of the most important raw materials in the manufacturing of cutting tools and precision wear-resistant components. With excellent hardness, outstanding wear resistance, and superior compressive strength, carbide rods are widely used in CNC machining, metal cutting, drilling, and high-precision tooling industries.
Our company specializes in the production of high-quality tungsten carbide rods made from ultra-fine tungsten carbide powder and cobalt binder, ensuring stable performance, long tool life, and consistent machining results.
We supply both solid carbide rods and coolant hole carbide rods (single hole / double straight holes / double helical holes) to meet different machining requirements ranging from general machining to high-speed and high-precision cutting applications.
2. Key Advantages of Our Tungsten Carbide Rods
(1) Exceptional Hardness and Wear Resistance
Our carbide rods achieve hardness levels up to HRA 92.5–93.5, making them suitable for cutting high-strength and abrasive materials such as stainless steel, cast iron, hardened steel, and alloy steel.
(2) High Transverse Rupture Strength (TRS)
Optimized cobalt content ensures excellent toughness and resistance to chipping or cracking during heavy-duty machining.
(3) Fine Grain Structure
We use ultra-fine grain powder technology, which significantly improves edge sharpness and tool life, especially for micro tools and precision cutting tools.
(4) Excellent Thermal Stability
Carbide rods maintain stable performance even under high-speed cutting conditions, reducing deformation and tool failure rate.
(5) Precision Grinding and Tight Tolerance
All ground rods are manufactured with strict dimensional control, ensuring consistency for tool makers and CNC manufacturers.
3. Product Types
3.1 Solid Tungsten Carbide Rods
Solid rods without coolant holes, designed for:
High rigidity applications
General-purpose cutting tools
End mills, reamers, and engraving tools
High strength tooling applications
3.2 Carbide Rods with Coolant Holes
Single Straight Hole Rods
Better heat dissipation
Improved chip evacuation
Suitable for deep hole drilling tools
Double Straight Hole Rods
Enhanced coolant flow
Ideal for high-speed CNC machining
Widely used in automotive and aerospace tooling
Double Helical Hole Rods
Advanced chip removal efficiency
Designed for high-performance cutting tools
Perfect for stainless steel and difficult-to-machine materials
4. Available Specifications
We offer a full range of standard and customized sizes:
Diameter Range: 0.3 mm – 40 mm
Length Range: 10 mm – 330 mm (or customized)
Tolerance: h5 / h6 / ground precision
Surface Condition: Sintered / Ground / Mirror polished
We also support:
Custom diameter & length
Special chamfering or edge treatment
Non-standard coolant hole design
5. Carbide Material Grades
We provide multiple grades based on different machining applications:
General Purpose Grades
YG6 / K10: Suitable for finishing and light cutting
YG8 / K20: Balanced wear resistance and toughness
High-Performance Grades
Ultra-fine grain carbide for micro tools
High cobalt grades for heavy-duty cutting
Special wear-resistant grades for stainless steel machining
Each grade is carefully engineered to ensure optimal performance in specific working conditions.
6. Applications of Tungsten Carbide Rods
Our carbide rods are widely used in multiple industries:
Metal Cutting Tools
End mills
Drills
Reamers
Inserts and cutters
Precision Machining
CNC high-speed machining tools
Micro drilling tools
PCB drilling tools
Industrial Wear Parts
Punches and dies
Guide pins
Wear sleeves
Special Applications
Aerospace components
Automotive precision tooling
Medical surgical tools
Woodworking and composite cutting tools
7. Manufacturing Process
Our carbide rods are produced through a strict process:
Raw material selection (high-purity tungsten carbide powder)
Ball milling and mixing with cobalt binder
Spray drying and granulation
Pressing and preforming
Vacuum sintering at high temperature
HIP (Hot Isostatic Pressing) for density improvement
Precision grinding and inspection
Each step is strictly controlled to ensure stable quality and performance consistency.
8. Quality Control System
We implement full inspection at every stage:
Chemical composition analysis
Density and hardness testing
TRS (transverse rupture strength) testing
Dimensional inspection
Surface roughness measurement
Microstructure analysis
Only fully qualified products are shipped to customers.
9. Packaging & Delivery
Anti-oxidation vacuum packaging
Shockproof export cartons or wooden boxes
Clear labeling for traceability
Global shipping via DHL / FedEx / Sea freight / Air freight
Standard lead time:
Stock sizes: 3–5 days
Custom sizes: 7–15 days
10. Why Choose Us
Factory direct supply with stable pricing
Over 10 years carbide manufacturing experience
Strong R&D capability for custom tooling materials
Fast response and professional technical support
Strict quality control system
OEM / ODM service available
We are committed to providing high-performance tungsten carbide solutions for global tool manufacturers and machining industries.
11. Frequently Asked Questions (FAQ)
Q1: Can I order small quantities for testing?
Yes, sample orders and small batch orders are available.
Q2: Do you support customized dimensions?
Yes, we can produce according to drawings or technical requirements.
Q3: What is the difference between solid rods and coolant hole rods?
Coolant hole rods improve cooling efficiency and chip removal, making them suitable for high-speed and deep cutting applications.
Q4: What industries do you mainly serve?
We serve CNC machining, automotive, aerospace, electronics, and precision tooling industries.
12. Contact Us
If you are looking for a reliable tungsten carbide rod supplier, feel free to contact us for technical support, samples, or quotation. We are ready to support your tooling business with stable quality and competitive pricing.
