Tungsten Carbide Rods Manufacturer | Solid & Coolant Hole Carbide Round Bars
Brand Name : JINXIN
Place of Origin : CHINA
MOQ : 100PCS
Packaging Details : COMMON PACKAGE
Delivery Time : 15 days
Supply Ability : 10000 PCS/MONTH
Matierial : Tungsten carbide、Cermet
Grade : YL10.2 /Cermet
Type : Ultrafine / Submicron
Application : Medical & Dental Instruments
Grain Size : Submicron / Fine Grain

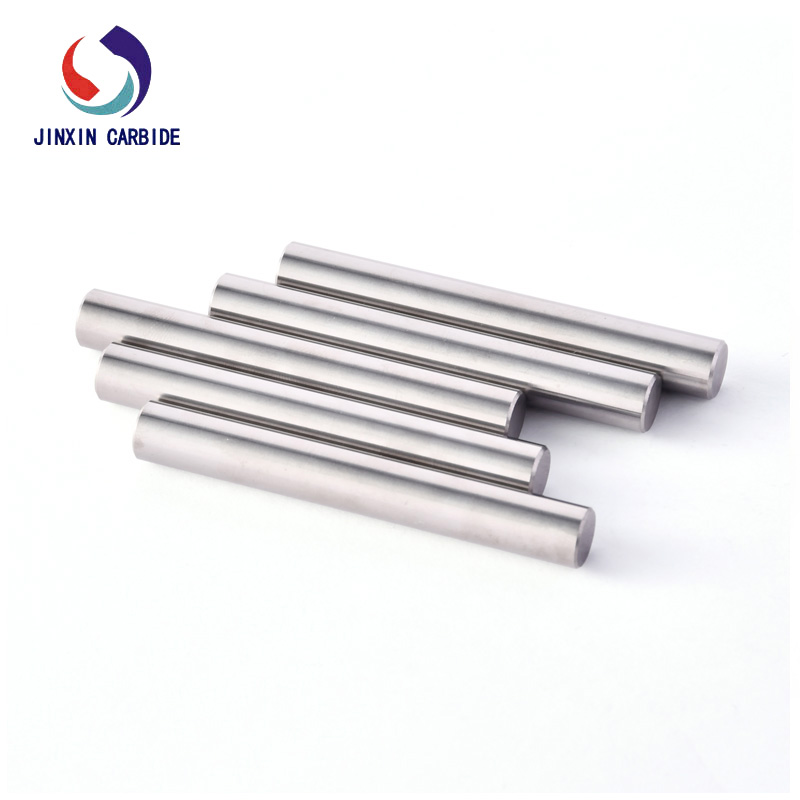

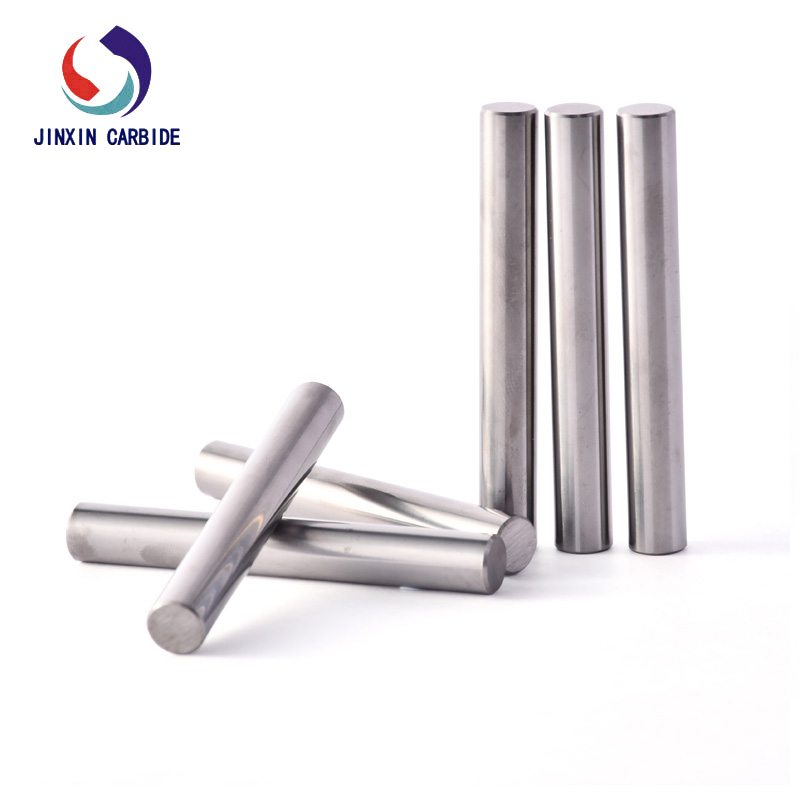

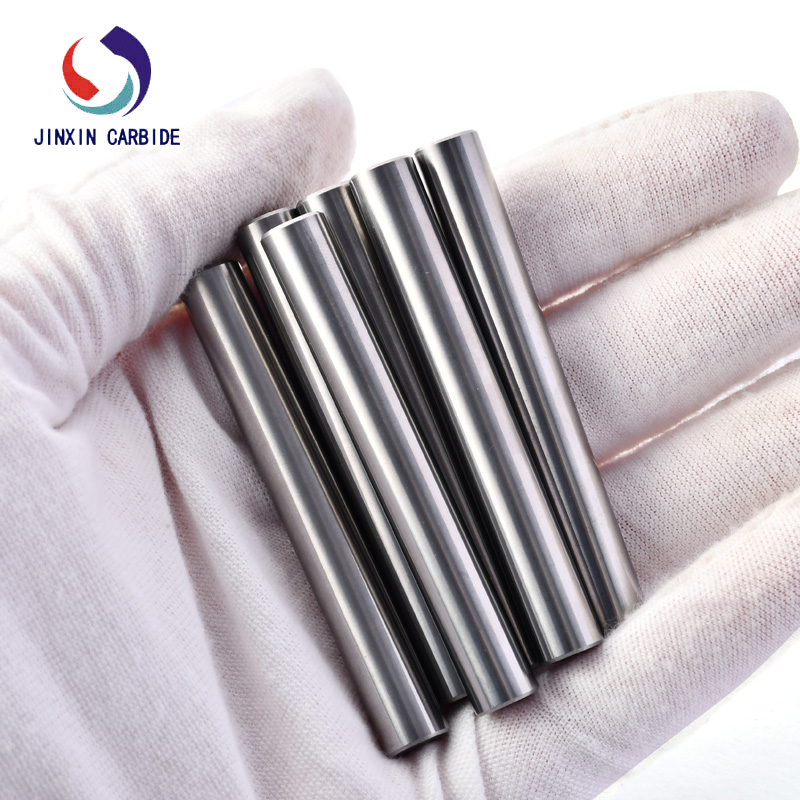

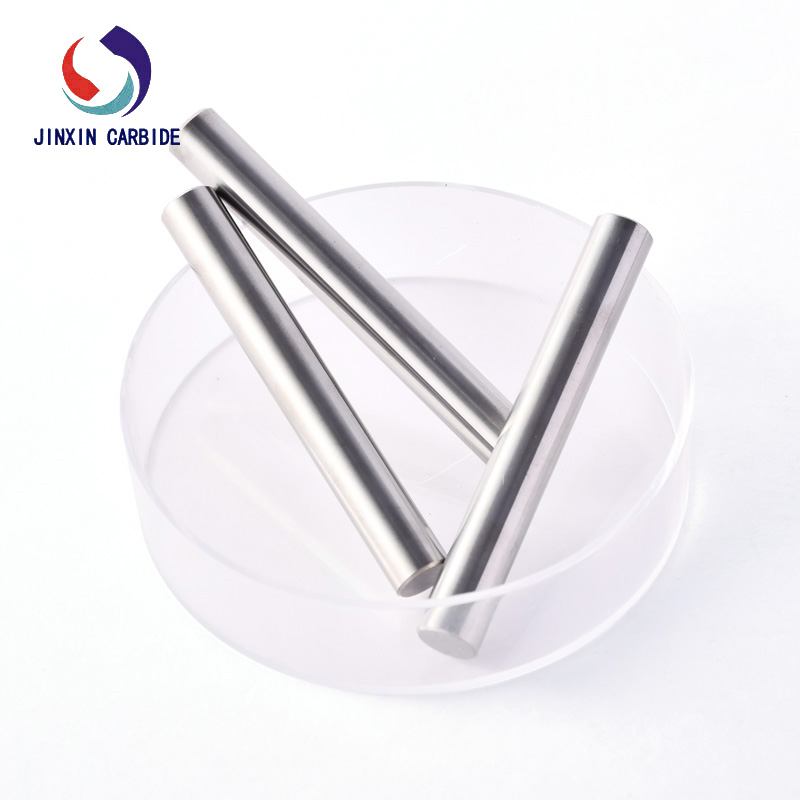

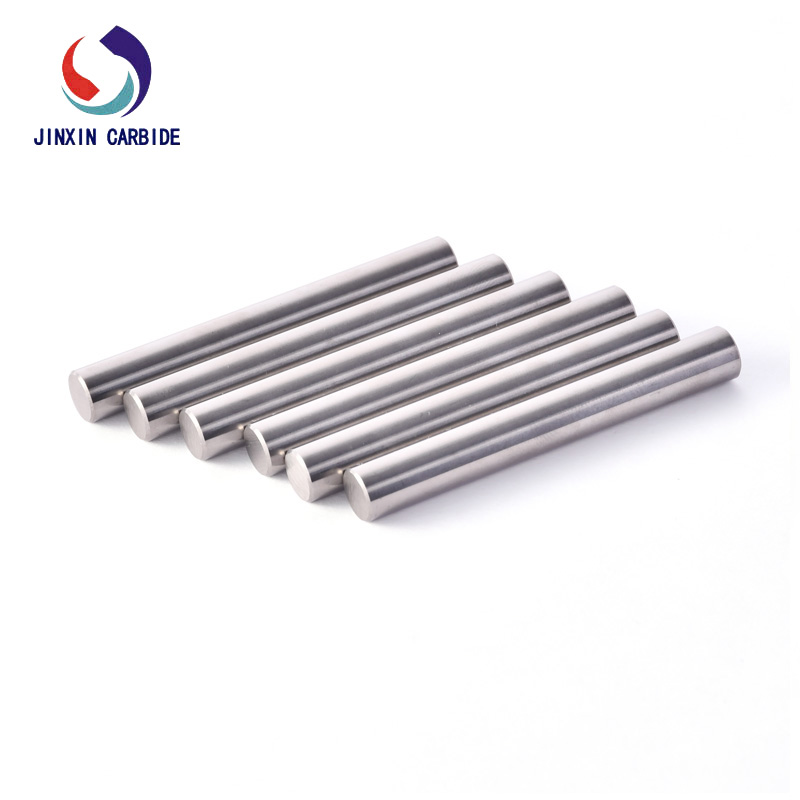

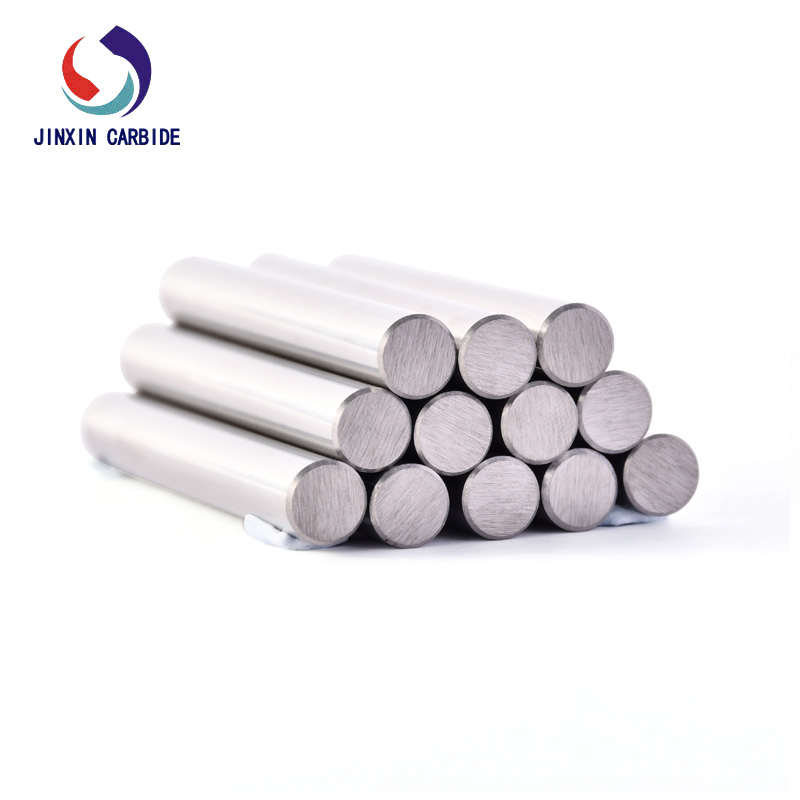

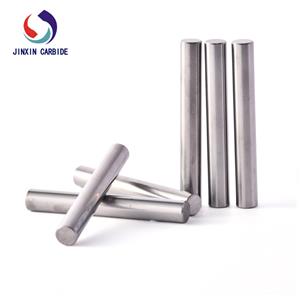

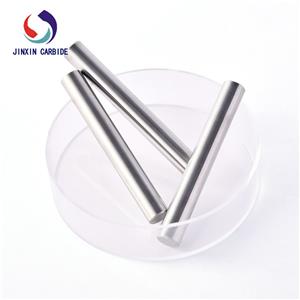

Tungsten carbide rods, also known as carbide round bars, are essential materials widely used in cutting tools, drilling tools, and wear-resistant components. Manufactured from high-quality tungsten carbide powder and cobalt binder, our carbide rods offer exceptional hardness, superior wear resistance, and excellent mechanical strength. Our carbide rods are available in both solid and coolant hole configurations, making them ideal for high-performance machining applications such as milling, drilling, reaming, and engraving.
Key Features of Tungsten Carbide Rods
Ultra High Hardness
Hardness up to HRA 89–93 ensures excellent cutting performance and long tool life.Outstanding Wear Resistance
Suitable for machining stainless steel, cast iron, aluminum, and hardened materials.High Strength & Toughness
Optimized cobalt content improves impact resistance and reduces breakage.Precision Grinding Surface
Tight tolerance and fine surface finish ensure consistency in tool production.
Product Types
1. Solid Carbide Rods
Without coolant holes
Ideal for standard cutting tools
Excellent rigidity and strength
2. Carbide Rods with Coolant Holes
Single hole / Double straight holes / Double helical holes
Improved heat dissipation and chip removal
Suitable for high-speed CNC machining
Specifications
| Diameter | Length | Type | Surface |
|---|---|---|---|
| 0.5mm – 40mm | 10mm – 330mm | Solid / 1 hole / 2 holes | Sintered / Ground |
Tolerance: h6 / h5 available
Surface Finish: Ra 0.2 – 0.8 μm
Material Grades
We provide a wide range of carbide grades to meet different machining needs:
K10 / YG6 – For general machining and finishing
K20 / YG8 – For roughing and high-impact applications
Ultra-fine grain grades – For precision tools and micro-drilling
Applications of Carbide Rods
End mills and drills
PCB micro drills
Reamers and taps
Medical tools
Woodworking tools
Wear parts and punches
