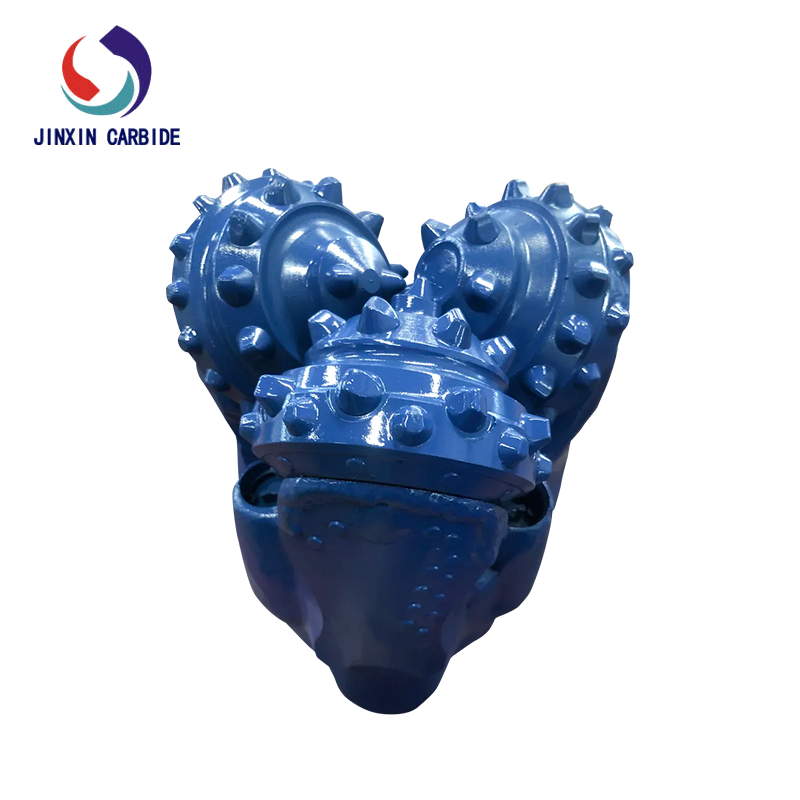

Tricone Bit 6 Inch IADC637 Tricone Bit For Water Well Oil Well Gas Well

Soft formation TCI tricone bits:

The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use ofboth conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in stickyformations.

Medium formation TCI tricone bits:

The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.

Hard formation TCI tricone bits:

The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.

Working principle

 1) Revolution of drill bit The revolution speed of the drill bit is the rotation speed of the turntable or the

down hole power drilling tool. When the drill bit revolves, the cone also rotates around the axis of the drill bit. The linear speed of each row of teeth on the cone rotating around the axis of the drill bit is different, and the linear speed of the outer row of teeth is the largest.

2) Rotation of the drill bit When the drill bit rotates, the counterclockwise rotation of the cone

around the axis of the tooth palm is called auto rotation. The rotation speed of the cone is determined by the revolution speed of the drill bit, and is related to the effect of the teeth on the bottom of the well.

3) Longitudinal vibration (axial vibration) impact crushing of the drill bit The change of the position of the wheel center makes the drill bit reciprocate up and down along the axial direction, which is the longitudinal vibration of the drill bit, which is related to the drill bit structure parameters such as tooth height and tooth spacing and lithology. Soft strata have small amplitudes, while hard strata have large amplitudes. The vibration frequency is proportional to the number of teeth and the speed of the cone.

4) Sliding shear breaking action of drill bit Crushing different types of rock requires different slippage of the drill bit, which is determined by the structural parameters of the drill bit. In soft formations, bit slippage is large, and in hard formations, it should be as small as possible or not slipped.
