Home > Products > Tire Studs > Virgin raw materials tungsten carbide tire studs

Virgin raw materials tungsten carbide tire studs

Brand : Jinxin

Product origin : China

Delivery time : 3-5 working days

Supply capacity : 10000000pcs/month

good anti-slip effect samples will be given upon the inquiry super grip ability sizes & types are available good wear resistance strict tolerance controlled 100% virgin raw material zinc plated for rust protection

Virgin raw materials tungsten carbide tire studs

Model: JX130
Diameter x Length: Φ9 x 15.2
Prominence: 3.2mm
The depth which put in Tire: 12mm
Min Thread: 9.5mm
Tip size: 2.6mm

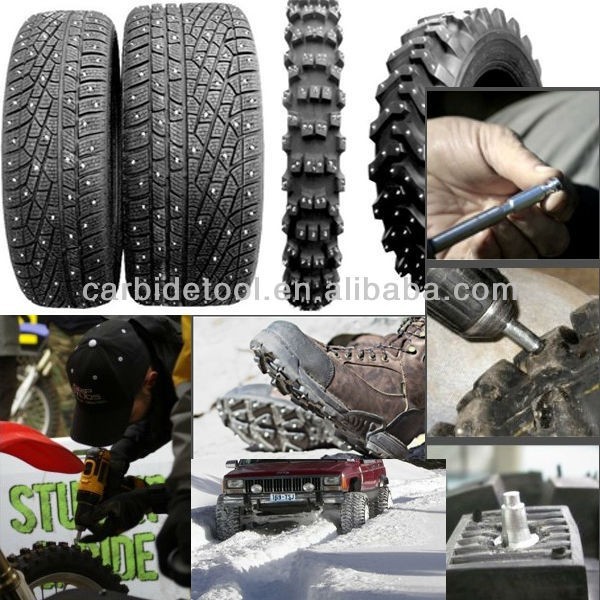

tungsten carbide studsApplication: The essential of the winter tire studs is not only non-skid, but also the winter tire studs could give the driver a really comfortable environment to drive in the winter.

Advantages:
-- 100% pure raw material
-- easily installed&removed
-- recycling use
-- lots of sizes & types are available/totally support customized
-- good wear resistance/long working life
-- good ice antiskid

Material and Properties:

Pin grade: JX55

Body material: carbon steel

Hardness: 90HRA

T.R.S.: 1550

Pin density: 12.8 g/cm3
